Kingston FURY Updates Award-Winning SSD to Include Heatsink model Option

Kingston FURY, the gaming division of Kingston Technology Company, Inc., a world leader in memory products and technology solutions, today announced the addition of Kingston FURY Renegade SSD with Heatsink, its second-generation PCIe 4.0 NVMe M.2 drive for console and PC gamers. Kingston FURY Renegade SSD with Heatsink maintains speed and temperature while delivering cutting-edge performance in high capacities using the latest Gen 4×4 controller.

By maximising the available bandwidth of PCIe 4.0, Kingston FURY Renegade SSDs achieve speeds up to 7,300/7,000MB/s read/write1 and up to 1,000,000 IOPS [1] to deliver amazing consistency for an exceptional gaming experience. The drives are optimised to reduce game and application load times, stream and capture with ease and give your system an overall boost in responsiveness. Available in high capacities up to 4TB [2], users can store an extensive library of their favourite games and media and still have space for the latest titles. Kingston FURY Renegade SSD offer two options for users both with formidable speeds and massive capacities:

  • Kingston FURY Renegade SSD with low profile, graphene aluminium heat spreader keeps your drive cool during intense usage and brings superior performance to the tightest of spaces in gaming PCs and laptops.
  • Kingston FURY Renegade SSD with Heatsink, the ultimate in aesthetics with an additional layer of thermal dispersion, so when the game heats up, your PS5 console stays cool.

“The design of the Kingston FURY Renegade SSD pushes the limits of PCIe Gen4 technology to provide users with high-performance storage to complement the latest CPUs and GPUs with unbound storage”, said Liny Cheliyan, Kingston EMEA Business Manager – Prosumer Flash and SSD “With the introduction of the optional heatsink model, users can meet the increasingly high standards of future gaming platforms with speed and thermal stability”.

Kingston FURY Renegade SSD family is currently available in 500GB, 1TB, 2TB and 4TB capacities. Kingston FURY Renegade SSD is backed by a limited five-year warranty4 and free technical support. For more information visit kingston.com.

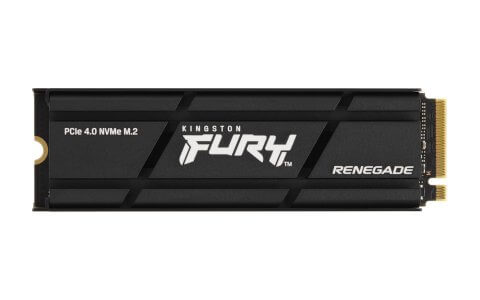

Kingston FURY Renegade SSD with Heatsink
Part Number Capacity
SFYRSK/500G 500GB Kingston FURY Renegade SSD with Heatsink
SFYRSK/1000G 1TB Kingston FURY Renegade SSD with Heatsink
SFYRDK/2000G 2TB Kingston FURY Renegade SSD with Heatsink
SFYRDK/4000G 4TB Kingston FURY Renegade SSD with Heatsink

Kingston FURY Renegade PCIe 4.0 NVMe M.2 SSD with Heatsink Features and Specifications:

  • Level up with PCIe 4.0 NVMe: Dominate with cutting-edge Gen 4×4 intense speeds up to 7,300/7,000MB/s1 read/write and up to 1,000,000 IOPS1
  • More space to play: Get all the latest titles and DLC available. Performance with high capacities up to 4TB2 to store your favourite games and media.
  • PS5 Ready™: Game-changing storage designed to maximize your play. Optional integrated aluminium heatsink model provides an additional layer of thermal dispersion to cool the drive and maintain peak performance.
  • Form Factor: 2 2280
  • Interface: PCIe 4.0 x4 NVMe
  • Capacities2: 500GB, 1TB, 2TB, 4TB
  • Controller: Phison E18
  • NAND: 3D TLC
  • Sequential Read/Write:
    • 500GB – 7,300/3,900MB/s
    • 1TB – 7,300/6,000MB/s
    • 2TB – 7,300/7,000MB/s
    • 4TB – 7,300/7,000MB/s
  • Random 4K Read/Write1:
    • 500GB – up to 450,000/900,000 IOPS
    • 1TB – up to 900,000/1,000,000 IOPS
    • 2TB – up to 1,000,000/1,000,000 IOPS
    • 4TB – up to 1,000,000/1,000,000 IOPS
  • Endurance (Total Bytes Written) [3]:
    • 500GB – 500TB
    • 1TB –0PB
    • 2TB – 0PB
    • 4TB – 0PB
  • Power Consumption:
    • 500GB – 5mW Idle / 0.34W Avg / 2.7W (MAX) Read / 4.1W (MAX) Write
    • 1TB – 5mW Idle / 0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write
    • 2TB – 5mW Idle / 0.36W Avg / 2.8W (MAX) Read / 9.9W (MAX) Write
    • 4TB – 5mW Idle / 0.36W Avg / 2.7W (MAX) Read / 10.2W (MAX) Write
  • Storage Temperature: -40°C~85°C
  • Operating Temperature: 0°C~70°C
  • Dimensions:

Heat spreader:

  • 500GB-1TB – 80mm x 22mm x 2.21mm
  • 2TB-4TB – 80mm x 22mm x 3.5mm

Heatsink:

  • 80mm x 23.67mm x 10.5mm
  • Weight:

Heat spreader:

  • 500GB-1TB – 7g
  • 2TB-4TB – 9.7g

Heatsink:

  • 500GB-1TB – 32.1g
  • 2TB-4TB – 34.9g
  • Vibration Operating: 17G Peak (7-800Hz)
  • Vibration Non-operating: 20G Peak (20-1000Hz)
  • MTBF: 1,800,000 hours
  • Warranty/Support [4]: Limited 5-year warranty with free technical support

This SSD is designed for use in desktop and notebook computer workloads and is not intended for server environments.

For more information visit kingston.com.

[1] Based on “out-of-box performance” using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software, and usage.

[2]  Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash memory guide at kingston.com/flashguide.

[3]  Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).

[4]  Limited warranty based on 5 years or “Percentage Used” which can be found using the Kingston SSD Manager (Kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a Percentage Used value of greater than or equal to one hundred (100). See Kingston.com/wa for details.
